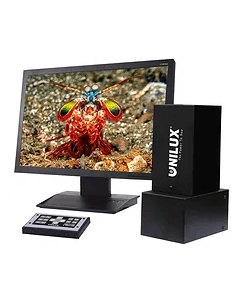

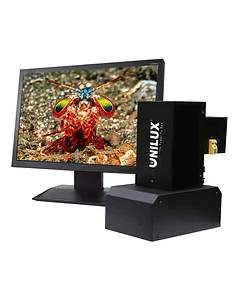

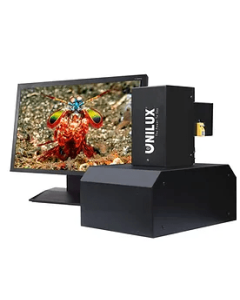

INTUITIVE PRINT MONITORING WITH UNMATCHED SUPPORT
UniPRINT Vision Systems set a new standard in web viewing, combining a well-established method for waste reduction with unparalleled local service and support.
Featuring a high-definition image display, intuitive touch-screen interface, and the capability to inspect both standard and UV-visible inks in one system, UniPRINT surpasses the benchmarks of other web monitoring systems in its price range.
Whether opting for the standard software suite or upgrading to advanced inspection capabilities with the pro version, every UniPRINT system guarantees outstanding performance and value.
- High-Definition Digital Imaging
- Powerful 18X Optical Zoom
- Touch Screen Operation
- Precision Achromatic Close-up Lens
- Progressive Scan Camera
- Large 130 x 100 mm Viewing Area Standard

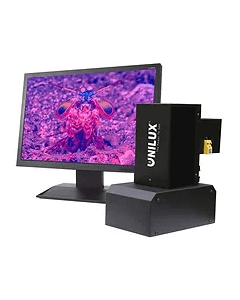

- Standard / White Light or UV / Black Light Inspection Available
- Variable Speed Traverse (up to 300 mm/sec)
TRAVERSE POWER
- Manual traverse: 24V, 1.7A 40W with 110-220VAC adapter
- Motorized traverse: 24V, 5A 120W with 110-220VAC adapter
PRESS SPEED
- Web speed up to 600m/min or 1,968 ft/min
RESOLUTION
- High-resolution camera for excellent color reproduction
HMI & DISPLAY
- Monitor with Keypad or Touchscreen Monitor
- HDMI output monitor with a resolution of 1920 x 1080
- Combine multiple screens with an HDMI splitter
TRAVERSE
- Manual and Motorized available
- Rotary encoders are available for servo presses, with the ability to add an eye mark sensor for reset purposes
| Feature | Standard | Touch | Pro |
|---|---|---|---|
| Keypad with Standard Monitor | X | — | — |
| Touch Screen Monitor | — | X | X |
| Split Screen | X | X | X |
| Automatic Constant Scan* | X | X | X |
| Label Checking* | X | X | X |
| Register Mark Memory* | X | X | X |
| Horizontal Automatic Constant Scan - Speed Based* | — | X | X |
| Vertical Automatic Constant Scan* | X | X | X |
| Electronic Web Edge* | X | X | X |
| Scan Positions* | X | X (9) | X (18) |
| One Touch Positioning* | — | X | X |
| Image Centering* | — | X | X |
| Multiview* | — | X | X |
| Image to Disc | — | X | X |
| Webmap* | — | — | X |
| Jobs Database | — | — | X |
