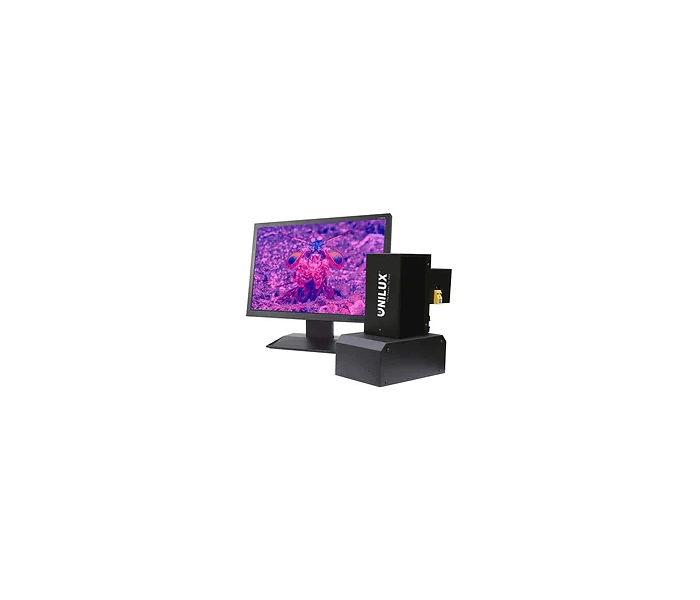

UniPrint Model 130 UV
UniPrint Model 130 UV
USER-FRIENDLY PRINT MONITORING WITH UNRIVALED SUPPORT
Inspection of optical brighteners or UV-visible inks and coatings in mid- to wide-web security printing applications. Examples include currency, lottery, anti-counterfeit marks for brand authenticity, and cold-seal verification.
UniPRINT Vision Systems break new ground in web viewing with a proven approach to waste reduction paired with unmatched local service and support.
Offering a crystal-clear image, touch-screen operation, and the ability to inspect standard or UV-visible inks with a single system, UniPRINT exceeds the specifications of other web monitoring systems in its price range.
USER-FRIENDLY PRINT MONITORING WITH UNRIVALED SUPPORT
UniPRINT Vision Systems break new ground in web viewing with a proven approach to waste reduction paired with unmatched local service and support. Offering a crystal-clear image, touch-screen operation, and the ability to inspect standard or UV-visible inks with a single system, UniPRINT exceeds the specifications of other web monitoring systems in its price range. Whether you choose the standard software package or upgrade to advanced inspection features with pro, you can be certain that every UniPRINT system provides exceptional performance and value.
Features
- High-Definition Digital Imaging
- Powerful 18x Optical Zoom
- Touch Screen Operation
- Precision Achromatic Close-up Lens
- Progressive Scan Camera
- Large 130 x 100 mm Viewing Area Standard
- Standard / White Light or UV / Black Light Inspection Available
- Variable Speed Traverse (up to 300 mm/sec)
DUAL CAMERA OPTION AVAILABLE FOR ALL MODELS
Specifications
TRAVERSE POWER
- Manual traverse: 24V, 1.7A 40W with 110-220VAC adapter
- Motorized traverse: 24V, 5A 120W with 110-220VAC adapter
PRESS SPEED
- Web speed up to 600m/min or 1,968 ft/min
RESOLUTION
- High-resolution camera for excellent color reproduction
HMI & DISPLAY
- Monitor with Keypad or Touchscreen Monitor.
- HDMI output monitor with a resolution of 1920 x 1080
- Combine multiple screens with an HDMI splitter.
TRAVERSE
- Manual and Motorized available.
- Rotary encoders are available for servo presses, with the ability to add an eye mark sensor for reset purposes.
-
UniPrint Model 185USER-FRIENDLY PRINT MONITORING WITH UNRIVALED SUPPORT
The 185 is the ideal choice for high-quality wide web inspection. It provides an extended 185 x 140 mm field of view illuminated by four strobes.
UniPRINT Vision Systems break new ground in web viewing with a proven approach to waste reduction paired with unmatched local service and support.
Offering a crystal-clear image, touch-screen operation, and the ability to inspect standard or UV-visible inks with a single system, UniPRINT exceeds the specifications of other web monitoring systems in its price range.
-
UniPrint Model 130USER-FRIENDLY PRINT MONITORING WITH UNRIVALED SUPPORT
The 130 is an excellent entry-level wide web product surpassing the specifications of many other systems in its price range. With 130 x 100 mm field of view, 18x optical zoom, and dual strobes, images are crystal clear providing exceptional value for money. UV option available.
UniPRINT Vision Systems break new ground in web viewing with a proven approach to waste reduction paired with unmatched local service and support.
Offering a crystal-clear image, touch-screen operation, and the ability to inspect standard or UV-visible inks with a single system, UniPRINT exceeds the specifications of other web monitoring systems in its price range.
-

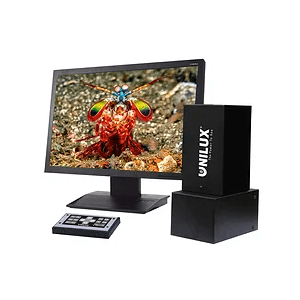

UniPrint Model 100USER-FRIENDLY PRINT MONITORING WITH UNRIVALED SUPPORT
The 100 is the ideal system for narrow web machines. With its specially designed light chamber and fixed 90 degree camera rotation achieves a very large 100 x 130 mm field of view in a compact size.
UniPRINT Vision Systems break new ground in web viewing with a proven approach to waste reduction paired with unmatched local service and support.
Offering a crystal-clear image, touch-screen operation, and the ability to inspect standard or UV-visible inks with a single system, UniPRINT exceeds the specifications of other web monitoring systems in its price range.
