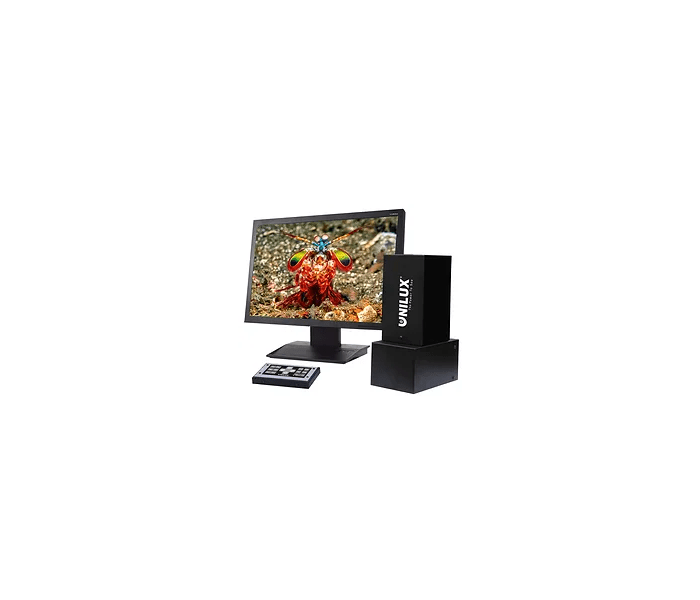

UniPrint Model 100

SKU
UniPrint-Model-100

UniPrint Model 100

USER-FRIENDLY PRINT MONITORING WITH UNRIVALED SUPPORT

The 100 is the ideal system for narrow web machines. With its specially designed light chamber and fixed 90 degree camera rotation achieves a very large 100 x 130 mm field of view in a compact size.

UniPRINT Vision Systems break new ground in web viewing with a proven approach to waste reduction paired with unmatched local service and support.

Offering a crystal-clear image, touch-screen operation, and the ability to inspect standard or UV-visible inks with a single system, UniPRINT exceeds the specifications of other web monitoring systems in its price range.

USER-FRIENDLY PRINT MONITORING WITH UNRIVALED SUPPORT

UniPRINT Vision Systems break new ground in web viewing with a proven approach to waste reduction paired with unmatched local service and support. Offering a crystal-clear image, touch-screen operation, and the ability to inspect standard or UV-visible inks with a single system, UniPRINT exceeds the specifications of other web monitoring systems in its price range. Whether you choose the standard software package or upgrade to advanced inspection features with pro, you can be certain that every UniPRINT system provides exceptional performance and value.

Features

  • High-Definition Digital Imaging
  • Powerful 18x Optical Zoom
  • Touch Screen Operation
  • Precision Achromatic Close-up Lens
  • Progressive Scan Camera
  • Large 130 x 100 mm Viewing Area Standard

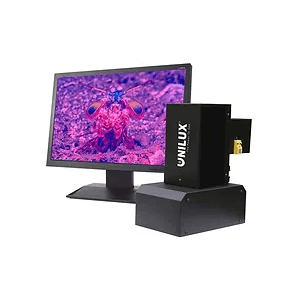

  • Standard / White Light or UV / Black Light Inspection Available
  • Variable Speed Traverse (up to 300 mm/sec)

DUAL CAMERA OPTION AVAILABLE FOR ALL MODELS

Specifications

TRAVERSE POWER

  • Manual traverse: 24V, 1.7A 40W with 110-220VAC adapter
  • Motorized traverse: 24V, 5A 120W with 110-220VAC adapter

PRESS SPEED

  • Web speed up to 600m/min or 1,968 ft/min

RESOLUTION

  • High-resolution camera for excellent color reproduction

HMI & DISPLAY

  • Monitor with Keypad or Touchscreen Monitor.
  • HDMI output monitor with a resolution of 1920 x 1080
  • Combine multiple screens with an HDMI splitter.

TRAVERSE

  • Manual and Motorized available.
  • Rotary encoders are available for servo presses, with the ability to add an eye mark sensor for reset purposes.
