PrimeBlade 700

SKU
Prime-700

PrimeBlade 700

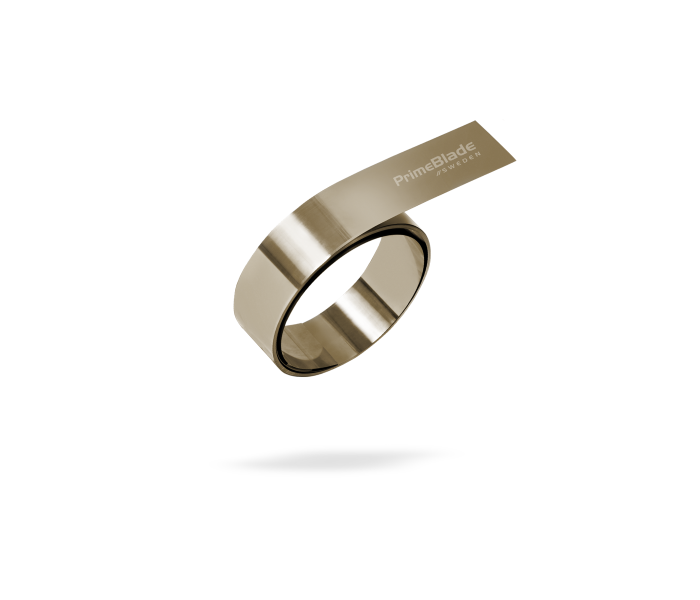

The PrimeBlade® 700 series is a ceramic coated doctor blade, developed by combining our unique surface grinding and special surface treatment technologies.

The result is an improved coating adhesive bond and wear resistance compared to existing coated doctor blades. Type 700 can also be an alternative for PrimeBlade® 900 Nano I users, especially for rotogravure printers.

The high grade steel together with the special ceramic particle surface coating technology gives a very low doctor blade tip contact friction, greatly enhanced lifetime, and an extraordinarily clean wipe. It reduces the brittleness and cracking risk in the ceramic coating area, and lessens the risk of blade damage due to mechanical impact. Also, due to the refined base steel and extra fine ceramic particles used, it reduces the ink contamination that causes higher wear on chrome cylinders.

More Information
Material Ceramic Coated
Manufacturer PrimeBlade

PrimeBlade® Type 700 advantages

  • Longer life wear resistance
  • Perfect for abrasive inks
  • Reduced friction between the blade and anilox roll or gravure cylinder
  • Optimized print quality
  • Less adjustments of the doctor blade
  • Reduced printing problems in gravure, such as lines, streaks and hazing
  • Wears down into smaller particles



Thickness: 0.15 to 0.30mm

Edge profiles: Various

Straightness: 1mm/3000mm

Hardness: 850 – 900 HV (coated surface only)
